Contamination in a compressed air system doesn't announce itself. It shows up later, in a failed valve, a batch of product that doesn't meet spec, or a dryer working harder than it should because what came before it wasn't set up right. We deal with this constantly, and the pattern is almost always the same: someone's compressed air filtration setup is either incomplete, installed in the wrong order, or matched to the wrong grade for what the system is actually producing.

Getting it right means understanding that contamination comes in three distinct forms, each requiring a different removal method, and that the compressed air and gas filters addressing each form have to run in a specific sequence to work at all.

What Compressed Air and Gas Filters Are Actually Up Against

Compressed air picks up contamination at every point in the system. The compressor introduces oil aerosols and oil vapor. Rust and scale from aging piping contribute solid particles. Atmospheric dust gets pulled in at the inlet. Water is constant because compressing air concentrates the moisture in it, and that moisture condenses as the air cools downstream.

Compressed air and gas filters are built to address all of this, but not through a single design. Particulate filters handle the solid material first. They work as a physical barrier, stopping dust, rust, pipe scale, and debris while air passes through. A 1-micron particulate filter covers ISO 8573 Class 2 particle removal for most industrial applications. Medical air, electronics, and other precision applications call for 0.01-micron HEPA-grade elements to hit Class 1 standards.

Solid particles have to go first, before air reaches any other stage. Particulates clog coalescing and carbon media quickly, driving up pressure drop long before those elements are actually spent. The particulate stage exists to protect everything downstream from premature failure, and positioning it wrong costs more in replacement elements than the filter housing itself ever would.

The Liquid Problem: How Compressed Air and Gas Filters Handle Oil and Water

A lot of the moisture and oil in a compressed air system doesn't travel as vapor. Much of it exists as fine aerosol, tiny suspended droplets that are too small to fall out on their own and too small for a particulate filter to capture. Coalescing filters are designed for exactly this.

The filter medium in a coalescing element is fine fibrous material. Microscopic droplets hit the fibers as air flows through and merge with other droplets until they're heavy enough to fall into the filter bowl by gravity. An automatic or manual drain valve clears the collected liquid from there. At the high-efficiency end, compressed air and gas filters rated at 0.01 micron in the coalescing stage reduce oil carryover to 0.008 PPM. General-purpose coalescing elements run around 1 micron with oil carryover near 0.4 PPM. The right grade depends on what's downstream.

Effective moisture removal in compressed air systems also depends on what's running upstream of the filters. A refrigerated air dryer chills the air to condense water vapor before it reaches the filtration stages, typically hitting a dew point between 35°F and 50°F. A desiccant air dryer goes further, using moisture-absorbing media to achieve dew points as low as negative 40°F, which matters in outdoor installations, instrument air lines, or cold-climate environments. Your coalescing filter works in tandem with whatever air dryer system you're running, catching liquid that condenses downstream of the dryer rather than replacing the dryer's function entirely.

One thing coalescing filters don't catch: oil vapor. Vapor is a gas, not a droplet. It passes through coalescing media without being captured and requires a different stage entirely.

The One Contaminant That Coalescing Won't Touch

Oil vapor removal requires adsorption, not mechanical filtration. Activated carbon has a porous internal structure that creates enormous surface area per unit volume, and vapor-phase hydrocarbon molecules bond to that surface as air flows through. A properly sized carbon bed reduces oil vapor to 0.002 PPM and removes hydrocarbon odor and taste from the air supply entirely.

Food processing, pharmaceutical manufacturing, dental offices, and breathing air applications need this stage. ISO 8573 Class 1 oil content requires getting oil vapor below 0.01 mg/m³, and that's the range activated carbon adsorption covers.

Carbon beds saturate over time, but they don't clog the way mechanical filters do, so pressure drop alone won't tell you when the bed is spent. Time-based replacement schedules or downstream odor testing in critical applications are more reliable indicators. Carbon also needs to stay dry. Liquid oil or water hitting the carbon stage ruins the bed fast, which is exactly why the coalescing stage must come before it without exception. Once a carbon bed saturates with liquid contamination, it's done.

The Compressed Air and Gas Filters We Carry and How They Fit Your Setup

We stock Van Air's F200, F101, and F102 series along with high-pressure filtration from United Filtration, and between them, they cover most applications we see.

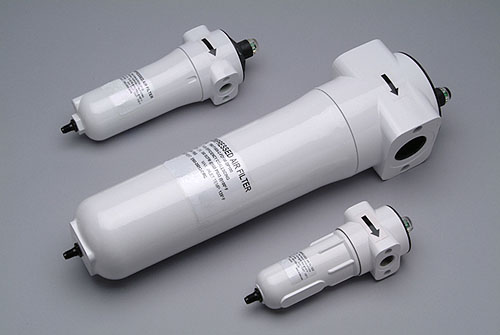

The F200 series handles 15 to 1000 scfm at 100 psig across 14 housing sizes with connections from 1/4" to 3" NPT. Cast aluminum construction with epoxy powder coating handles the corrosion side. Nine filtration grades run from 25 micron down to 0.01 micron, so you can match the element to the stage rather than overfitting the entire system to the strictest grade. Push-on elements make servicing fast, and the standard pop-up differential pressure indicator removes the guesswork from replacement timing.

For higher flow applications, the F101 scales up to 5000 scfm in ASME-stamped welded steel construction, with maximum working pressures up to 1440 psig available. The F102 handles up to 20,000 scfm and uses a bottom-inlet design that knocks out bulk liquids before air reaches the coalescing elements — important when liquid loading is heavy or variable. Ten filtration grades are available across both models. These are the lines we spec into large industrial operations, natural gas processing, and anywhere handling serious flow volumes.

When pressure requirements push past standard ranges, United Filtration's line handles up to 10,000 psig with 100% machined housings and captured o-rings for positive sealing. Element options cover microfiber, reinforced, pleated, and five-layer stainless steel depending on the service. These units run in CNG dispensing, gas plant sampling, aerospace, chemical processing, booster compressor service, and food and dairy production, among other applications. If you're working with alternative fuels, cryogenic production, or sample process analyzers, this is where that work gets handled.

Differential pressure indicators and automatic drain valves are available as accessories across most of these product lines, making them practical air compressor accessories for keeping maintenance on schedule rather than guessing. Pair any of these filtration setups with an industrial air dryer suited to your dew point requirements and you've got a complete treatment train that actually produces clean air. Tell us your flow rate, pressure, and what you're filtering, and we'll help you identify which compressed air and gas filters fit your system.
