How Desiccant Beads Protect Semiconductor Manufact…
Posted by AVP on Aug 11th 2025
Precision, cleanliness, and climate control define semiconductor manufacturing. From wafer fabrication to final packaging, these facilities operate in environments where even the slightest amount of moisture can compromise product yield. That’s where desiccant beads come into play—specifically silica gel beads, known for their uniform spherical form and exceptional adsorption capability.
In this blog, we take a closer look at how desiccant beads contribute to semiconductor reliability, why silica gel leads over other desiccant materials, and how our products at Air Vacuum & Process Inc. are engineered to meet these exacting needs.
Why Moisture Control Matters in Semiconductor Facilities
Maintaining strict humidity levels is not just a best practice in semiconductor manufacturing—it’s a non-negotiable requirement. According to Bry-Air, while some areas in semiconductor plants operate at around 30% relative humidity (RH), critical zones such as wafer fabs and advanced packaging lines must maintain RH below 10%. Even brief exposure to higher moisture levels can cause corrosion, encourage static buildup, and result in wafer defects or premature component failure.
To mitigate these risks, engineers use silica gel desiccant beads to dry process air, purge gas lines, and condition cleanroom environments.
An Industry Standard

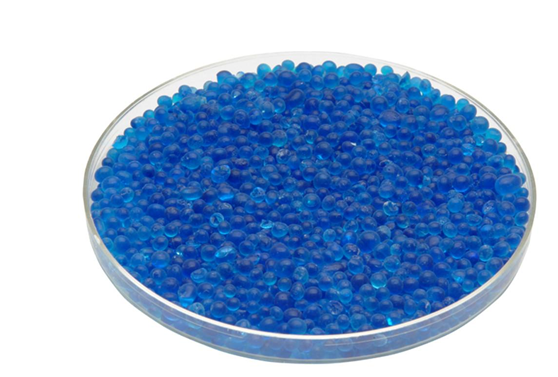

Silica gel beads are highly porous, spherical adsorbents made of silicon dioxide (SiO2). Their hydrophilic surface—thanks to silanol functional groups—allows them to effectively attract and hold water molecules. As noted in the American Pharmaceutical Review, silica gel offers a water uptake capacity between 0.25 g/g and 0.40 g/g depending on humidity. While their capacity at RH below 40% is modest, it significantly increases between 40% and 100% RH, making them ideal for environments with dynamic moisture levels.
In semiconductor applications, silica gel beads help maintain dry boxes, purge lines, wafer carriers (FOUPs), and gas cabinets. Their stability and non-reactivity make them safe for use near sensitive electronics.
Beads vs. Powders vs. Coated Forms
A 2025 MDPI study directly compared desiccant forms—beads, powders, and coated substrates—using silica gel, zeolite, and activated alumina. Although coated desiccants cycled faster and consumed less energy, beaded formats topped the charts in terms of total moisture uptake per gram. In short, for applications where capacity outweighs cycle speed, silica gel beads are still the best option.
Silica Gel vs. Activated Alumina: What the Data Shows
The same research showed that silica gel beads consistently outperformed activated alumina across five key metrics:
- Water Uptake: Silica gel adsorbed more water across all RH levels, particularly above 60%.
- Desorption Efficiency: Both silica gel and activated alumina regenerated effectively at ~95–110°C, but silica gel regained capacity faster.
- Kinetics: Silica gel offered faster adsorption/desorption kinetics in mid-range RH (60–65%).
- Handling: Beaded formats were easier to use and safer than powdered options, which risk aerosolization.
- Surface Area: BET analysis revealed that silica gel beads had a surface area of ~759 m²/g—more than activated alumina—making them more effective at capturing water molecules.
Activated alumina remains useful for applications like oil filtration or fluoride removal, but for fast-cycling, moisture-sensitive environments like semiconductor manufacturing, silica gel beads are the preferred choice.
Enhancing Desiccant Performance with Hybrid Systems
Some manufacturers have begun integrating silica gel beads with emerging technologies to enhance moisture control even further. In a recent study, researchers examined how pairing silica gel desiccant beads with ionic membranes in volumes of 35.4L to 230L significantly improved humidity decay rates. The combination not only reduced humidity faster but also passively dried the beads, nearly restoring them to their original dry state after five days. This configuration opens doors for reusable, low-maintenance humidity control in semiconductor storage and transportation.
Where Desiccant Beads Are Used in Semiconductor Operations
Here’s a breakdown of the key areas within a semiconductor facility where silica gel beads play a vital role:
1. Cleanroom Environment Control
Desiccant beads are used in HVAC systems and dehumidifiers to maintain RH below 10%, ensuring optimal conditions for wafer processing and lithography. Reviews on solid desiccant cooling (SDC) highlight the importance of choosing the right material—silica gel included—to balance energy efficiency and performance in these high-precision environments.
2. Dry Air Systems for Equipment and Tools
Instruments like mask aligners, etching tools, and wafer inspection machines often require ultra-dry air. Silica gel beads installed in inline dryers or compressed air systems ensure consistent dew points.
3. FOUPs and SMIF Pods
These wafer transport containers are purged with dry nitrogen or air. Desiccant beads help maintain ultra-low RH inside, preserving wafer integrity during handling and transport.
4. Process Gas Drying
Moisture in gases like argon or nitrogen can interfere with deposition or etching. Silica gel beads are packed into gas dryers to remove water vapor before gases reach the process chamber.
5. Storage Cabinets for Tools and Materials
Optics, chemicals, and hygroscopic materials are often kept in dry boxes that include desiccant bead cartridges to maintain stable conditions.
We recommend using ceramic bead support media to hold beads securely within towers and cartridge housings for continuous operation.
Versatility and Reusability in a Demanding Environment
What makes silica gel beads stand out in a semiconductor environment isn’t just their capacity—it’s their resilience. Beads can withstand thermal cycling, support high flow rates, and regenerate repeatedly without losing structural integrity. Combined with their high surface area and ability to maintain performance under variable RH, they offer semiconductor engineers a robust tool in the fight against humidity.
And while silica gel beads are widely used in pharmaceutical packaging, as noted in the American Pharmaceutical Review, their role in semiconductor environments is equally vital due to their fine-tuned pore structure and adsorption behavior.
Proven Capacity of Desiccant Beads
Moisture control in semiconductor manufacturing is a science in itself—one where the margin for error is razor-thin. Silica gel desiccant beads, with their proven capacity, regenerability, and performance across fluctuating humidity ranges, are an essential part of the solution. Their spherical form ensures efficient packing and airflow, while their chemistry guarantees consistent results.
To equip your facility with the right solution, explore our full line of silica gel desiccant beads, activated alumina, and ceramic bead supports here at Air Vacuum & Process Inc. We help keep your precision operations dry, stable, and running flawlessly.
