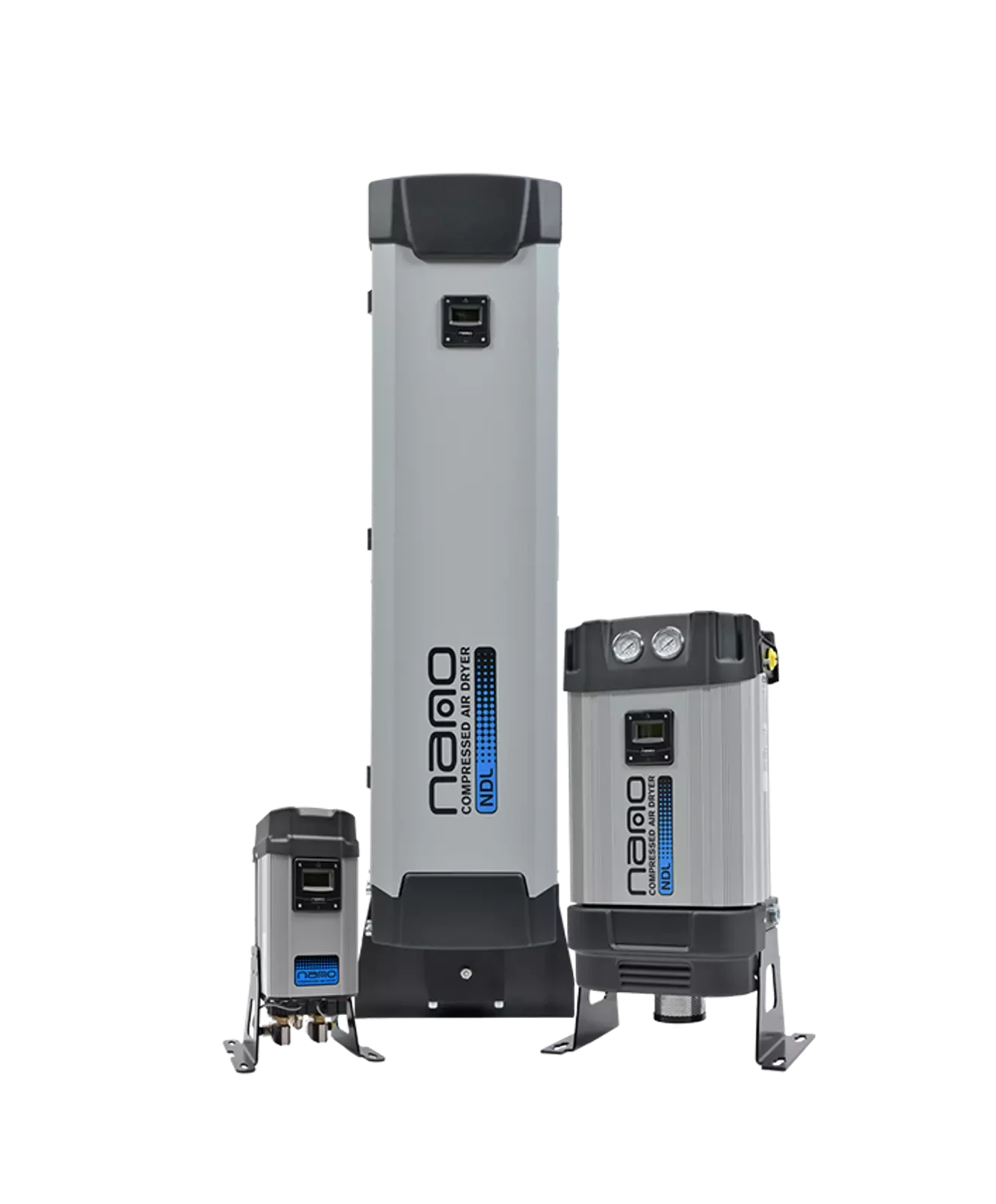

Modular Desiccant Dryers
Introducing the ultimate solution to the problems caused by contaminated compressed air - the nano high-purity desiccant compressed air dryers. These dryers are specially designed for use in compressor rooms, at the point of application, or integration into your original equipment. With their -40°F pressure dew point, they are perfect for sensitive processes or instrumentation. The modular, space-saving design of these dryers makes them easy to install and ready to use in small spaces where traditional twin-tower dryer designs won't fit. The system comes with standard pre-filter and outlet filtration, low-pressure drop, and consistent dew point performance, providing numerous benefits. Get your hands on this amazing modular dryer system and enjoy the benefits of a clean, consistent, and reliable compressed air supply.
- Features & Benefits
- Specifications
- Brochure
- Flow Rate: 3 scfm and up
- Connection: ⅜” PTC to 2 ½” NPT (F)
- Air Quality: ISO 8573.1:2010 Class 1.2.2
- High performance valves designed for durability, ease of maintenance and long service life.
- Patented, high density snowstorm filled cartridges (models NDL 010 to NDL 130) with integrated after filter (all models) can be serviced in less than 15 minutes and provide maximum adsorption capacity.
- Energy-saving dew point control and a -94°F pressure dew point are optional features available on all models, from NDL 010 to NDL 6130. The advanced PLC controller option is only available for models NDL 2110 through NDL 6130.
| Desiccant Dryer Model | Prefilter (0.01 micron) | Prefilter (1 micron) | Integrated Afterfilter | Inlet & Outlet | Rated Flow at 100 psig |
| Part No. | Part No. | Part No. | PTC/NPT (F) | scfm | |
| D1 | |||||
| NDL 010 GFN | GFN 0006 M01 | - | standard | ⅜” PTC | 3 |
| NDL 020 GFN | GFN 0006 M01 | - | standard | ⅜” PTC | 5 |
| NDL 030 GFN | GFN 0015 M01 | - | standard | ⅜” PTC | 10 |
| NDL 040 GFN | GFN 0015 M01 | - | standard | ⅜” PTC | 15 |
| NDL 050 GFN | GFN 0025 M01 | - | standard | ½” PTC | 20 |
| D2 | |||||
| NDL 060 GFN | GFN 0105 M01 | - | standard | 1” | 34 |
| NDL 070 GFN | GFN 0105 M01 | - | standard | 1” | 41 |
| NDL 080 GFN | GFN 0105 M01 | - | standard | 1” | 53 |
| NDL 090 GFN | GFN 0105 M01 | - | standard | 1” | 66 |
| NDL 100 GFN | GFN 0105 M01 | - | standard | 1” | 88 |
| NDL 110 GFN | GFN 0175 M01 | - | standard | 1” | 106 |
| NDL 120 GFN | GFN 0175 M01 | - | standard | 1” | 132 |
| NDL 130 GFN | GFN 0175 M01 | - | standard | 1” | 177 |
| D3 | |||||
| NDL 2110 GFN2 | GFN 0450 M01 | GFN 0450 M1 | standard | 2” | 212 |
| NDL 2120 GFN2 | GFN 0450 M01 | GFN 0450 M1 | standard | 2” | 276 |
| NDL 2130 GFN2 | GFN 0450 M01 | GFN 0450 M1 | standard | 2” | 400 |
| NDL 3130 GFN2 | GFN 0700 M01 | GFN 0700 M1 | standard | 2” | 560 |
| NDL 4130 GFN2 | GFN 0850 M01 | GFN 0850 M1 | standard | 2 ½” | 750 |
| NDL 6120 GFN2 | GFN 0850 M01 | GFN 0850 M1 | standard | 2 ½” | 828 |
| NDL 6130 GFN2 | GFN 1250 M01 | GFN 1250 M1 | standard | 2 ½” | 1110 |
| Specifications | D1 & D2 | D3 | ||
| Standard | Optional | Standard | Optional | |
| Maximum particle size (ISO class) | class 2 (1 micron) | class 1 (0.01 micron) | class 2 (1 micron) | class 1 (0.01 micron) |
| Maximum water content (ISO class) | class 2 (-40°F) | class 1 (-94°F pdp) | class 2 (-40°F pdp) | class 1 (-94°F) |
| Minimum operating pressure | 58 psig | - | 58 psig | - |
| Maximum operating pressure | 232 psig | - | 145 psig | 232 psig (consult factory) |
| Recommended operating temp range | 35 to 85°F | - | 35 to 100°F | - |
| Design operating temperature range | 35 to 100°F | - | 35 to 122°F | - |
| Power supply requirements | 100 to 240 VAC / 50 or 60 Hz | pneumatic or 24 V DC | 100 to 240 VAC / 50 or 60 Hz | pneumatic or 24 V DC |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
Download Brochure

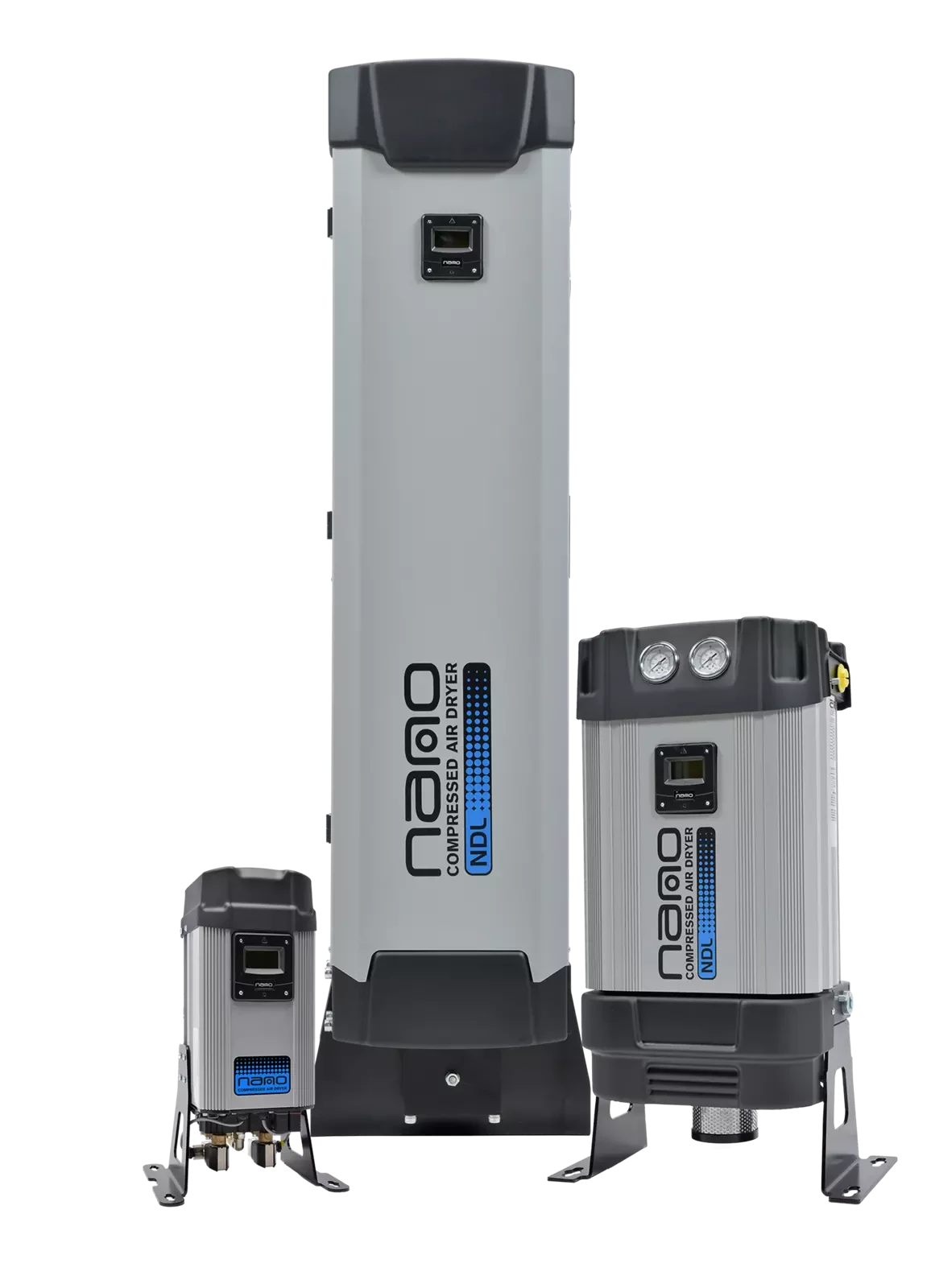

Low Dew Point Desiccant Dryers
The nano modular ultra-high purity low dew point desiccant compressed air dryers are an effective solution for your most critical applications. By lowering the pressure dew point of the compressed air stream to -94°F, it provides the ultimate protection for super critical applications such as semiconductor, electronics, and pharmaceutical manufacturing. These dryers have a modular, space-saving design that is easy to install & ready for use in spaces too small for a traditional twin tower dryer design. Dual 1 and 0.01 micron pre-filtration and 1 micron outlet filtration, low pressure drop and consistent dew point performance are just a few of the benefits of the modular dryer system.
- Features & Benefits
- Specifications
- Brochure
- Flow Rate: 2 scfm and up
- Connection: ⅜” PTC to 2 ½” NPT (F)
- Air Quality: ISO 8573.1:2010 Class 1.1.2
- These models have high performance valves designed for durability, ease of maintenance, and long service life.
- The patented, high density snowstorm filled cartridges (models NDL 010 to NDL 130) with integrated after filter (all models) can be serviced in less than 15 minutes and provide maximum adsorption capacity
- Energy-saving dew point control and a -94°F pressure dew point are optional features available on all models, from NDL 010 to NDL 6130. The advanced PLC controller option is only available for models NDL 2110 through NDL 6130.
| Modular Desiccant Dryer Model | Stage 1 Prefilter | Stage 2 Prefilter | After Filter | Inlet & Outlet | Rated Flow at 100 psig |
| Part No. | Part No. | Part No. | NPT (f) | scfm | |
| D1 | |||||
| NDL 010 GFN2 LDP | GFN 0006 M1 | GFN 0006 M01 | integrated | ⅜" PTC | 2 |
| NDL 020 GFN2 LDP | GFN 0006 M1 | GFN 0006 M01 | integrated | ⅜" PTC | 3 |
| NDL 030 GFN2 LDP | GFN 0015 M1 | GFN 0015 M01 | integrated | ⅜" PTC | 7 |
| NDL 040 GFN2 LDP | GFN 0015 M1 | GFN 0015 M01 | integrated | ⅜" PTC | 10 |
| NDL 050 GFN2 LDP | GFN 0025 M1 | GFN 0025 M01 | integrated | ½” PTC | 14 |
| D2 | |||||
| NDL 060 GF2 LDP | GFN 0105 M1 | GFN 0105 M01 | integrated | 1” | 23 |
| NDL 070 GF2 LDP | GFN 0105 M1 | GFN 0105 M01 | integrated | 1” | 28 |
| NDL 080 GF2 LDP | GFN 0105 M1 | GFN 0105 M01 | integrated | 1” | 37 |
| NDL 090 GF2 LDP | GFN 0105 M1 | GFN 0105 M01 | integrated | 1” | 46 |
| NDL 100 GF2 LDP | GFN 0105 M1 | GFN 0105 M01 | integrated | 1” | 61 |
| NDL 110 GF2 LDP | GFN 0125 M1 | GFN 0125 M01 | integrated | 1” | 74 |
| NDL 120 GF2 LDP | GFN 0175 M1 | GFN 0175 M01 | integrated | 1” | 92 |
| NDL 130 GF2 LDP | GFN 0175 M1 | GFN 0175 M01 | integrated | 1” | 124 |
| D3 | |||||
| NDL 2110 GF2 LDP | GFN 0450 M1 | GFN 0450 M01 | integrated | 2” | 148 |
| NDL 2120 GF2 LDP | GFN 0450 M1 | GFN 0450 M01 | integrated | 2” | 193 |
| NDL 2130 GF2 LDP | GFN 0450 M1 | GFN 0450 M01 | integrated | 2” | 280 |
| NDL 3130 GF2 LDP | GFN 0450 M1 | GFN 0450 M01 | integrated | 2” | 392 |
| NDL 4130 GF2 LDP | GFN 0850 M1 | GFN 0850 M01 | integrated | 2 ½” | 525 |
| NDL 6120 GF2 LDP | GFN 0850 M1 | GFN 0850 M01 | integrated | 2 ½” | 580 |
| NDL 6130 GF2 LDP | GFN 0850 M1 | GFN 0850 M01 | integrated | 2 ½” | 777 |
| Specifications | D1 & D2 | D3 | ||
| Standard | Optional | Standard | Optional | |
| Maximum particle size (ISO class) | class 2 (1 micron) | class 1 (0.01 micron) | class 2 (1 micron) | class 1 (0.01 micron) |
| Maximum water content (ISO class) | class 1 (-94°F pdp) | class 2 (-40°F) | class 1 (-94°F pdp) | class 2 (-40°F) |
| Minimum operating pressure | 58 psig | - | 58 psig | - |
| Maximum operating pressure | 232 psig | - | 232 psig | - |
| Recommended operating temp range | 35 to 85°F | - | 35 to 85°F | - |
| Design operating temperature range | 35 to 100°F | - | 35 to 100°F | - |
| Power supply requirements | 100 to 240 VAC / 50 or 60 Hz | pneumatic or 24 V DC | 100 to 240 VAC / 50 or 60 Hz | pneumatic or 24 V DC |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.

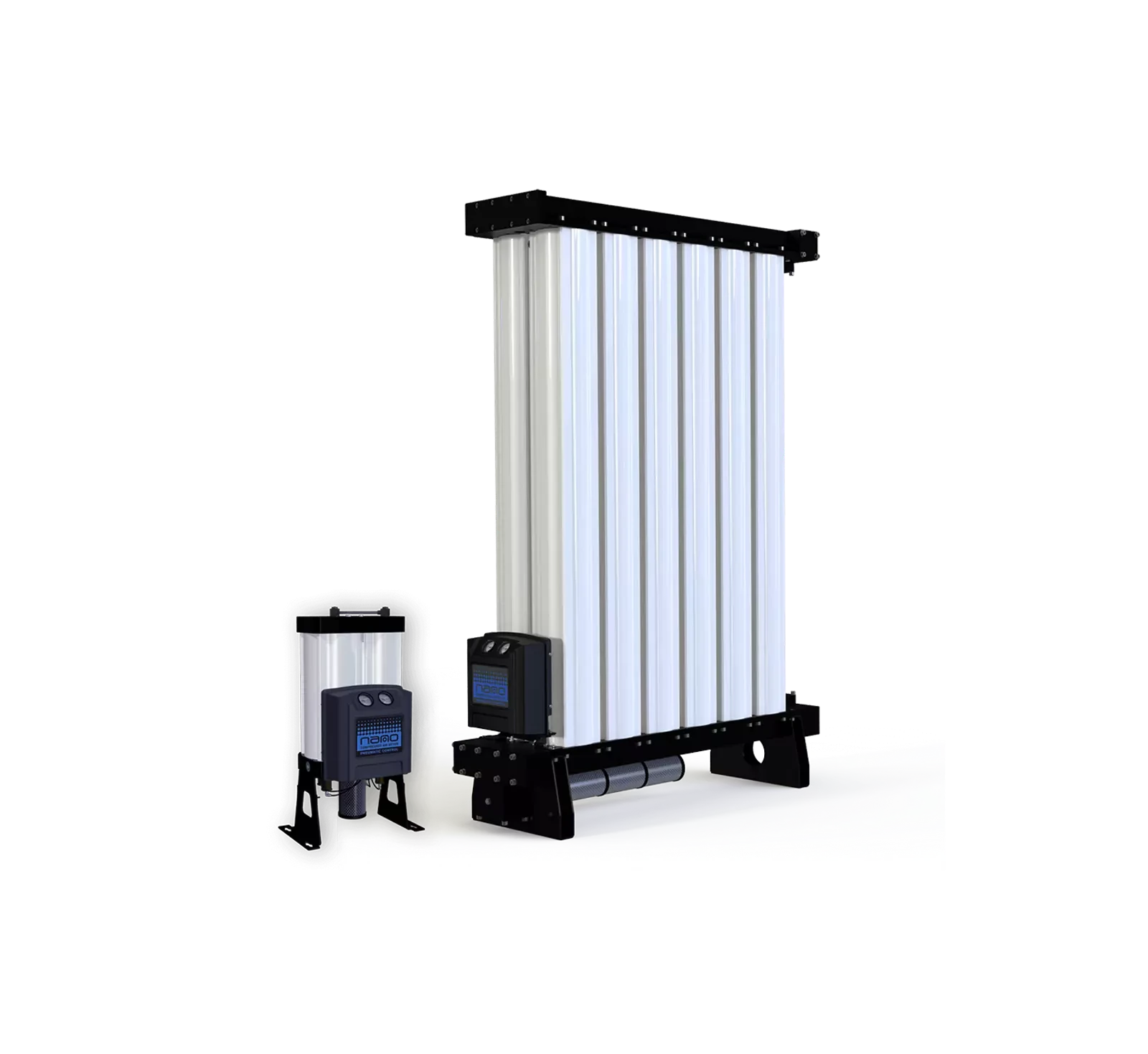

Pneumatic Modular Desiccant Dryers
If you're looking for a reliable solution to keep your compressed air clean and dry, the nano high-purity pneumatic desiccant compressed air dryers are just what you need. These dryers are designed to operate safely and efficiently in even the most challenging environments, producing clean, dry compressed air with a -40°F PDP. Whether you're working in a classified location where NEMA 7 explosion-proof controls are required or in a remote area without access to power, these dryers are the right choice. They're ideal for oil and gas rigs, land-based drilling rigs, lumber mills, and other explosion-proof areas. Don't settle for less when it comes to your compressed air needs. Choose the nano high-purity pneumatic desiccant compressed air dryers for superior performance and reliability.
- Features & Benefits
- Specifications
- Brochure
- Flow Rate: 34 to 1110 scfm
- Connection: 1” to 2 ½” NPT (F)
- Air Quality: ISO 8573.1:2010 Class 1.2.2
- 100% tested for leaks, proper operation and dew point performance.
- Compact design allows installation in spaces too small for a welded tower dryer.
- Patented, high density snowstorm filled cartridges (models NDL 060 to NDL 130) with integrated after filter (all models 130) can be serviced in less than 15 minutes and provide maximum adsorption capacity.
| Pneumatic Desiccant Dryer Model | Prefilter | After Filter | Inlet & Outlet | Rated Flow at 100 psig |
| NPT(F) | scfm | |||
| D2 | ||||
| NDM 060 GF PNU | GFN 0105 M01 | integrated | 1" | 34 |
| NDM 070 GF PNU | GFN 0105 M01 | integrated | 1" | 41 |
| NDM 080 GF PNU | GFN 0105 M01 | integrated | 1” | 53 |
| NDM 090 GF PNU | GFN 0105 M01 | integrated | 1” | 66 |
| NDM 100 GF PNU | GFN 0105 M01 | integrated | 1” | 88 |
| NDM 110 GF PNU | GFN 0125 M01 | integrated | 1” | 106 |
| NDM 120 GF PNU | GFN 0175 M01 | integrated | 1” | 132 |
| NDM 130 GF PNU | GFN 0175 M01 | integrated | 1” | 177 |
| D3 | ||||
| NDM 2110 GF PNU | GFN 0450 M01 | integrated | 2” | 212 |
| NDM 2120 GF PNU | GFN 0450 M01 | integrated | 2” | 276 |
| NDM 2130 GF PNU | GFN 0450 M01 | integrated | 2” | 400 |
| NDM 3130 GF PNU | GFN 0700 M01 | integrated | 2” | 560 |
| NDM 4130 GF PNU | GFN 0850 M01 | integrated | 2 ½” | 750 |
| NDM 6120 GF PNU | GFN 0850 M01 | integrated | 2 ½” | 828 |
| NDM 6130 GF PNU | GFN 1250 M01 | integrated | 2 1/2" | 1110 |
| Specifications | Standard | Optional |
| Maximum particle size (ISO class) | class 2 (1 micron) | class 1 (0.01 micron) |
| Maximum water content (ISO class) | class 2 (-40°F pdp) | - |
| Minimum operating pressure | 87 psig | - |
| Maximum operating pressure | 232 psig | - |
| Recommended operating temp range | 35 to 100°F | - |
| Design operating temperature range | 35 to 122°F | - |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
