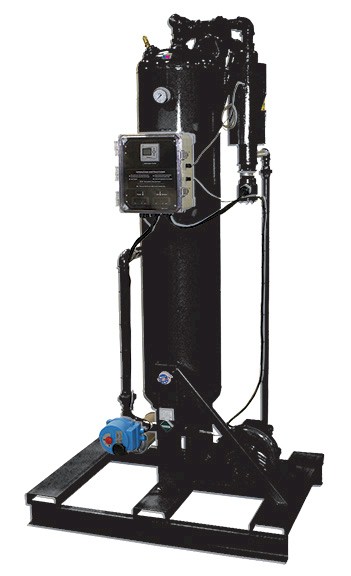

Altec HBS Series Single Tower Heat Regenerative Air Dryers

The HBS Series Single Tower Heat Regenerative Desiccant Air Dryers cost less to operate than a refrigerated air dryer, while providing higher quality air. All HBS Series Dryers are provided with factory installed Pre and After-Filters, resulting in a true all-in-one package. With only three moving parts and a rugged construction, their simplicity will impress and perform beyond your expectations.

Product Overview

  • Rugged, simple design - may be the last dryer you will ever need
  • Less than 1% remaining RH compared to 30% RH for refrigerated dryers
  • No moving parts during the drying cycle eliminates downtime
  • No HVAC or refrigerants results in minimal environmental impact
  • Lower operating cost than a refrigerated air dryer
  • Outlet Dew Points of 0°F to -50°F
Standard Features:
  • Power Requirements (model specific) -
    • 120 VAC, 1 Phase, 60 Hz
    • 230 VAC, 1 Phase, 60 Hz
    • 460 VAC, 3 Phase, 60 Hz
  • Maximum Pressure (model specific) -
    • 150 PSIG
    • 200 PSIG
  • Packaged Filters -
    • Oil Removal to 99.9% @ 0.3 to 0.6 Microns
    • Particle Removal to 99.9% @ 1 Micron
  • 3-Way Electric Ball Valves
  • Low Watt Density Heater
  • Industrial Duty Blower
  • Simple Maintenance
Optional Features:
  • Alternate Voltages
  • Dual Filter & Bypass Packages
  • 3-Way System Bypass
  • Environment Temperature Protection Kits
  • High Pressure (200 PSIG) Models
  • Bolt-Down Construction
Call for all Available Options
General Specifications:
  INLET Flow: Inlet / Outlet Ports Power Maximum Pressure
(SCFM @ 100 PSIG) (NPT) Requirement (PSIG)
HBS-0060-1 60 1" 120 VAC, 200
HBS-0100-1 100 1 Ph, 60 Hz
HBS-0150-1 150
HBS-0200-2 200 1-1/2" 230 VAC,
HBS-0250-2 250 1 Ph, 60 Hz
HBS-0300-4 300   150
HBS-0400-4 400 2"
HBS-0500-4 500
HBS-0650-4 650
HBS-0800-4 800
HBS-1000-4 1000 3" (FLG) 460 VAC,
HBS-1250-4 1250 3 Ph, 60 Hz
HBS-1600-4 1600
HBS-2100-4 2100 4" (FLG)
HBS-2600-4 2600
HBS-3000-4 3000 6"/4" (FLG)



Dimensions:
  Width Depth Height Weight
(in) (in) (in) (lbs)
HBS-0060-1 32 32 76 270
HBS-0100-1 73 475
HBS-0150-1 76 560
HBS-0200-2 46 30 78 590
HBS-0250-2 640
HBS-0300-4 940
HBS-0400-4 50 36 84 1,070
HBS-0500-4 1,190
HBS-0650-4 1,215
HBS-0800-4 56 40 87 1,270
HBS-1000-4 1,385
HBS-1250-4 1,510
HBS-1600-4 62 42 94 1,715
HBS-2100-4 68 52 2,255
HBS-2600-4 95 2,575
HBS-3000-4 72 60 3,433
