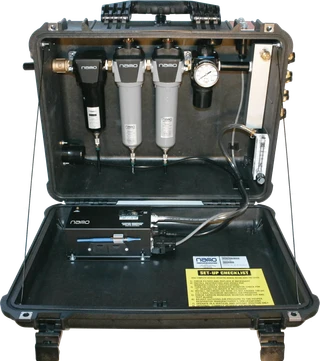

Compressed air for breathing is undoubtedly one of the most crucial requirements in our industry. The nano BAC portable breathing air purifier case is an exceptional solution for individuals or multiple users who need a robust breathing air system that can be easily taken anywhere. This unit produces a clean, reliable, and safe supply of breathable air that complies with the OSHA Grade D (US) and CSA Z180.1-13 (Canada) breathing air standards. The nano breathing air purifier case is a perfect choice for anyone who values their safety and wants to breathe easily while on the job.
- Features & Benefits
- Specifications
- Brochure
- Flow Rate: 50 or 100 scfm max
- Pressure Range: 15 to 150 psig
- STANDARDS: OSHA Grade D CSA Z180.1-13
- Made out of a portable , compact, and water resistant case
- Comes with 4 outlet connections for multiple users, the case contains a water separator, 0.01 micron coalescing filter with drain and activated carbon adsorber to remove moisture, oil aerosols odors and taste to 0.003 ppm
- Integrated battery operated CO monitor included as standard
| Breathing Air Purification Systems Model | Inlet Connection | Outlet Connection (s) | Flow (scfm) | |||||
| Size | Type | Qty | Size | Type | Qty | Inlet | Outlet | |
| BAC 050 CP N | ½” | NPT (F) | 1 | ⅜” | NPT (F) | 4 | 50 | 50 |
| BAC 050 CP H | ½” | NPT (F) | 1 | ¼” | Hansen | 4 | 50 | 50 |
| BAC 050 CP S | ½” | NPT (F) | 1 | ¼” | Schrader | 4 | 50 | 50 |
| BAC 100 CP N | ½” | NPT (F) | 1 | ⅜” | NPT (F) | 4 | 100 | 100 |
| BAC 100 CP H | ½” | NPT (F) | 1 | ¼” | Hansen | 4 | 100 | 100 |
| BAC 100 CP S | ½” | NPT (F) | 1 | ¼” | Schrader | 4 | 100 | 100 |
| Specifications | BAC Cases |
| Operating pressure range (for United States) | 15 to 150 psig |
| Operating pressure range (for Canada) | 15 to 150 psig |
| Recommended operating temperature range | 35 to 86°F |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
