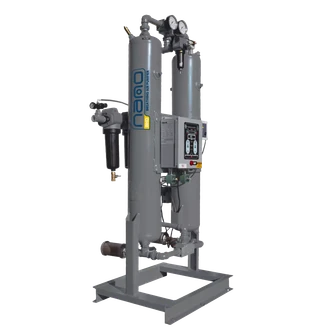

In many industries, compressed air is used for breathing purposes. However, in some cases, hazardous gases like carbon dioxide (CO2) and carbon monoxide (CO) need to be removed to ensure safe breathing. The nano BHD breathing air dryer system is designed to address this issue. It is an ideal solution for applications that involve high levels of CO and CO2 in the air, as it can reduce these gases to safe levels for breathing. The system produces a clean, reliable, and safe breathable air supply that meets the OSHA Grade D (US) and CSA Z180.1-13 (Canada) breathing air standards. By using this system, you can ensure that your workers are provided with the best possible quality of breathing air. Therefore, if you want to prioritize the safety and well-being of your workers, the nano BHD breathing air desiccant dryer system is the way to go.
- Features & Benefits
- Specifications
- Brochure
- Flow Rate: 50 to 1000 scfm
- Connections: ½” NPT to 3" Flg
- STANDARDS: OSHA Grade D CSA Z180.1-13
- High quality CO monitor as standard providing a constant sensing of CO concentration to ensure the safety of all users.
- Achieves a unique purification process without the addition of third purification vessel that is required and utlized on many competitive design. Includes high quality coalescing prefilter, activated carbon after filter and a particulate final filter mounted as standard.
- NEMA 4 programmable controller is standard with ethernet communcation capabilities.
| Breathing Air Desiccant Dryer Model | Inlet Connection | Flow at 100 psig (scfm) | |
| NPT/Flg | Inlet | Outlet | |
| BHD-50 | ½” | 50 | 40 |
| BHD-80 | ¾” | 80 | 64 |
| BHD-100 | 1" | 100 | 80 |
| BHD-150 | 1" | 150 | 120 |
| BHD-200 | 1 ½” | 200 | 160 |
| BHD-250 | 1 ½” | 250 | 200 |
| BHD-300 | 1 ½” | 300 | 240 |
| BHD-350 | 2" | 350 | 280 |
| BHD-450 | 2" | 450 | 360 |
| BHD-500 | 2" | 500 | 400 |
| BHD-600 | 2" | 600 | 480 |
| BHD-750 | 3" Flg | 750 | 600 |
| BHD-1000 | 3" Flg | 1000 | 800 |
| Specifications | |
| Operating pressure range | 60 to 175 psig |
| Inlet air temperature | 40 to 100°F |
| Ambient air temperature | 38 to 105°F |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
