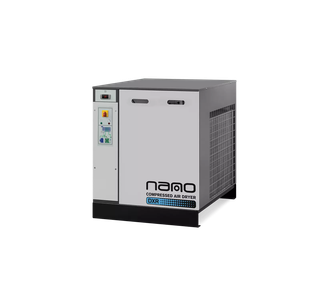

Direct Expansion Refrigerated Dryers
Introducing the nano range of DXR direct expansion refrigerated air dryer - the perfect solution for anyone who requires top-quality, dry compressed air for their manufacturing processes. This dryer is dependable and affordable, and its all-in-one heat exchanger, standard zero air loss drain, and eco-friendly refrigerants make it an excellent choice for environmentally conscious people. Not only that, but the dryer also guarantees a consistent dew point with minimal pressure drop, ensuring that your manufacturing processes run smoothly and efficiently. Don't settle for anything less than the best - choose the nano direct expansion refrigerated air dryer for all your compressed air needs.
- Features & Benefits
- Specifications
- Brochure
- Flow Rate: 10 to 4200 scfm
- Connection: ½” NPT (M) to 6” Flg
- Air Quality: ISO 8573.1:2010 Class 5
| Direct Expansion Refrigerated Dryer Model | Inlet & Outlet | Rated Flow at 100 psig | Absorbed Power | Power Supply (V/Ph/60Hz) | Refrigerant | |||
| NPT/FLG | scfm | kW | 115/1 | 230/1 | 460/3 | 545/3 | ||
| DXR 0010 N | ½” (M) | 10 | 0.2 | ✓ | R513A | |||
| DXR 0015 N | ½” (M) | 15 | 0.2 | ✓ | R513A | |||
| DXR 0020 N | ½” (M) | 20 | 0.2 | ✓ | R513A | |||
| DXR 0030 N | ½” (M) | 30 | 0.3 | ✓ | R513A | |||
| DXR 0050 N | ½” (M) | 50 | 0.9 | ✓ | R513A | |||
| DXR 0065 N | ¾” (M) | 65 | 0.9 | ✓ | R513A | |||
| DXR 0085 N | 1" (F) | 85 | 1 | ✓ | R410A | |||
| DXR 0105 N | 1" (F) | 105 | 1 | ✓ | R410A | |||
| DXR 0125 N | 1” (F) | 125 | 1 | ✓ | R410A | |||
| DXR 0150 N | 1” (F) | 150 | 1.5 | ✓ | R410A | |||
| DXR 0185 N | 1½” (F) | 185 | 1.6 | ✓ | R410A | |||
| DXR 0230 N | 1½” (F) | 230 | 2 | ✓ | R410A | |||
| DXR 0250 N | 1½” (F) | 250 | 2.4 | ✓ | R410A | |||
| DXR 0325 N | 2” (F) | 325 | 2.3 | ✓ | R410A | |||
| DXR 0400N | 2” (F) | 400 | 3.2 | ✓ | R410A | |||
| DXR 0500 N | 2 ½" (F) | 500 | 3.2 | ✓ | R410A | |||
| DXR 0600 N | 2 ½” (F) | 600 | 4.2 | ✓ | R410A | |||
| DXR 0850 N | 3" (M) | 850 | 5.8 | ✓ | ✓ | R410A | ||
| DXR 1050 N | 3" (M) | 1050 | 6 | ✓ | ✓ | R410A | ||
| DXR 1250 N | 3" (M) | 1250 | 6.7 | ✓ | ✓ | R410A | ||
| DXR 1600 N | 4” Flg | 1600 | 7.8 | ✓ | ✓ | R410A | ||
| DXR 1800 N | 4” Flg | 1800 | 9.4 | ✓ | ✓ | R410A | ||
| DXR 2200 N | 4” Flg | 2200 | 9.5 | ✓ | ✓ | R410A | ||
| DXR 2400 N | 4” Flg | 2400 | 9.7 | ✓ | ✓ | R410A | ||
| DXR 3000 N | 6” Flg | 3000 | 11.4 | ✓ | ✓ | R410A | ||
| DXR 3500 N | 6” Flg | 3500 | 12.8 | ✓ | ✓ | R410A | ||
| DXR 4200 N | 6” Flg | 4200 | 17.1 | ✓ | ✓ | R410A | ||
| Specifications | DXR 0010 to DXR 0030 | DXR 0050 to DXR 0250 | DXR 0325 to DXR 4200 |
| Design operating pressure range | 0 to 232 psig | 60 to 203 psig | 60 to 203 psig |
| Maximum inlet air temperature | 131°F | 131°F | 140°F |
| Maximum ambient temperature | 41°F - 114.8°F | 41°F - 114.8°F | 41°F - 114.8°F |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
