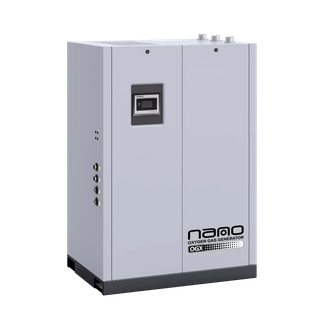

Nano Oxygen Generators
The nano OGX oxygen generator is a game-changer in oxygen generation technology. Its emphasis on efficiency, quality, and cost-effectiveness sets it apart from other options in the market. Not only does it use top-tier media and innovative design to ensure optimal oxygen volume, purity, and reliability, but it also meets the diverse needs of various industries and applications. What's even more impressive is its ability to significantly lower the cost per unit of oxygen, making it a compelling choice for businesses and organizations seeking sustainable and economical oxygen solutions. Trust the nano OGX oxygen generator to deliver on all fronts.
- Features & Benefits
- Specifications
- Brochure
- Purity: 90 to 95%
- Flow Rate: up to 19.3 scfh
- Max Allowable Working Pressure: 145 psig
- Customizable and adjustable to specific oxygen purity and flow rate requirements.
- Includes a zirconium O2 purity sensor, flow meter and pressure regulator as standard.
- Eliminates the need for transportation and storage of oxygen cylinders, reducing logistical complexities and safety risks associated with handling high-pressure gas cylinders.
| Oxygen Generator Model | Rated Outlet Flow at 87 psig | Oxygen Purity at the Outlet | ||
| 90% | 93% | 95% | ||
| OGX 110 | scfm | 1.9 | 1.8 | 1.5 |
| OGX 220 | scfm | 3.9 | 3.6 | 3 |
| OGX 330 | scfm | 5.9 | 5.5 | 4.9 |
| OGX 440 | scfm | 7.8 | 7.4 | 6.5 |
| OGX 550 | scfm | 9.8 | 9.2 | 8.2 |
| OGX 640 | scfm | 11.6 | 10.7 | 8.9 |
| OGX 850 | scfm | 15.5 | 14.2 | 11.9 |
| OGX 1070 | scfm | 19.3 | 17.8 | 14.9 |
| Specifications | Standard | Optional |
| Design operating pressure range | 65 to 145 psig | - |
| Design operating temperature range | 41 to 122°F | 14 to 122°F |
| Recommended operating temperature range | 41 to 95°F | - |
| Maximum inlet particulate | 0.1 micron | - |
| Maximum inlet dew point | 45°F PDP | - |
| Recommended inlet dew point | 37.4°F PDP | - |
| Maximum inlet oil content | 0.01 ppm | - |
| Supply voltage | 100 - 240 VAC (50 or 60Hz) | - |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
Download Brochure
