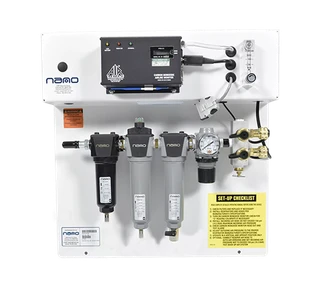

Breathing Air Panels
In any industry, safety is a top priority, especially when it comes to providing breathing air. That's why the nano BAP breathing air panels are the perfect solution for individuals or teams who need a reliable and convenient breathing air system without the inconvenience of a portable case. This system produces high-quality, clean, safe, breathable air, meeting the OSHA Grade D (US) and CSA Z180.1-13 (Canada) breathing air standards. Don't compromise on safety - choose nano BAP for your breathing air needs.
- Features & Benefits
- Specifications
- Brochure
- Flow Rate: 50 to 175 scfm
- Connection: ½ to ¾” NPT (F)
- STANDARDS: OSHA Grade D CSA Z180.1-13
- This product can be mounted to a wall or skid or any location that requires breathing air on a regular basis.
- This panel is built with multiple connections for multiple users, and contains a water separator, 0.01 micron coalescing with drain and activated carbon adsorber to remove moisture, oil aerosols odors, and taste to 0.003 ppm.
- Integrated CO monitor included as standard.
| Breathing Air Purification System Model | Inlet Connection | Outlet Connection (s) | Flow at 100 psig (scfm) | |||||
| Size | Type | Qty | Size | Type | Qty | Inlet | Outlet | |
| BAP 050 CP N | ½” | NPT (F) | 1 | ⅜” | NPT (F) | 4 | 50 | 50 |
| BAP 050 CP H | ½” | NPT (F) | 1 | ¼” | Hansen | 4 | 50 | 50 |
| BAP 050 CP S | ½” | NPT (F) | 1 | ¼” | Schrader | 4 | 50 | 50 |
| BAP 100 CP N | ¾” | NPT (F) | 1 | ⅜” | NPT (F) | 4 | 100 | 100 |
| BAP 100 CP H | ¾” | NPT (F) | 1 | ¼” | Hansen | 4 | 100 | 100 |
| BAP 100 CP S | ¾” | NPT (F) | 1 | ¼” | Schrader | 4 | 100 | 100 |
| BAP 175 CP N | ¾” | NPT (F) | 1 | ⅜” | NPT (F) | 4 | 175 | 175 |
| BAP 175 CP H | ¾” | NPT (F) | 1 | ¼” | Hansen | 4 | 175 | 175 |
| BAP 175 CP S | ¾” | NPT (F) | 1 | ¼” | Schrader | 4 | 175 | 175 |
| Specifications | BAP Panels |
| Operating pressure range (for United States) | 15 to 150 psig |
| Operating pressure range (for Canada) | 15 to 150 psig |
| Recommended operating temperature range | 35 to 86°F |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
